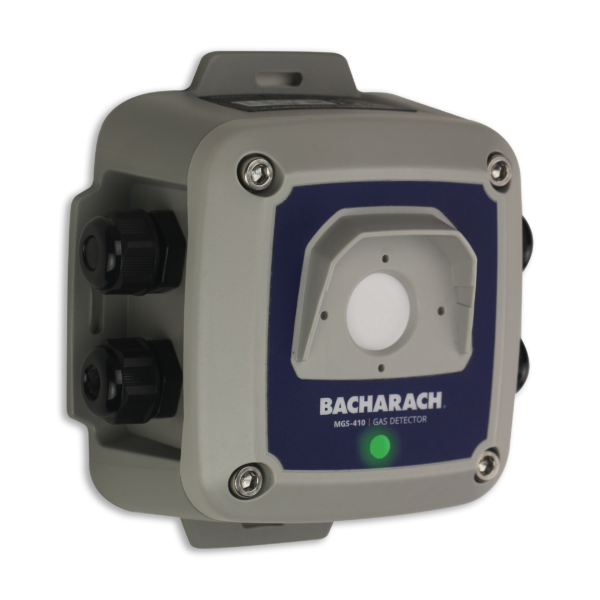

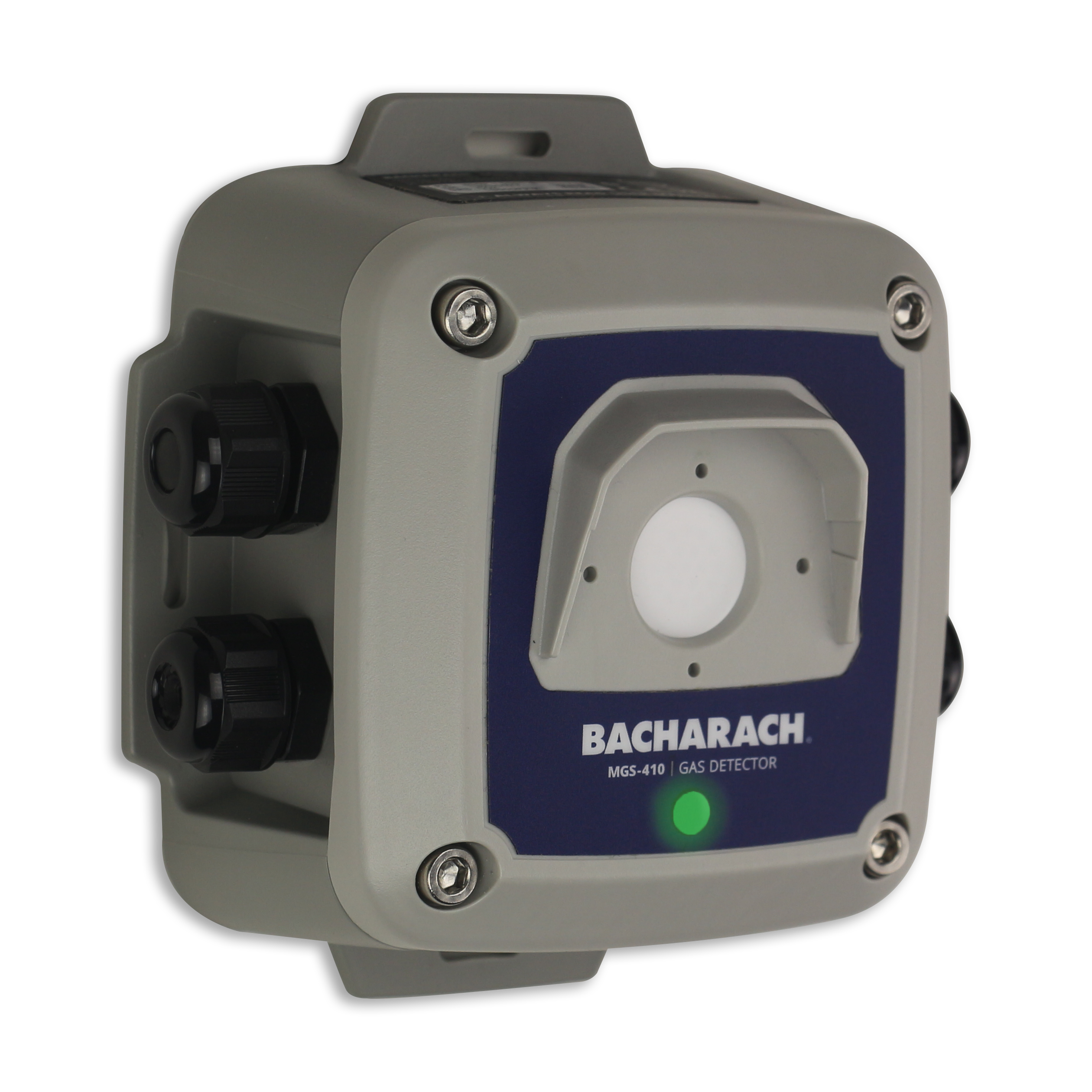

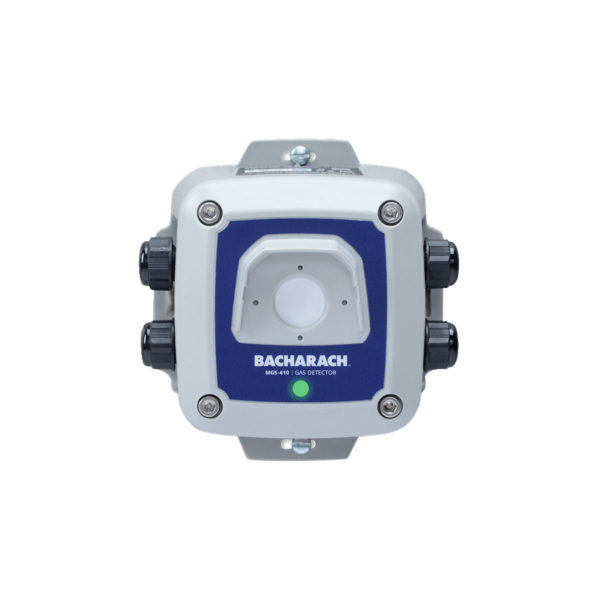

MGS-410 Gas Detector

MGS-410 Gas Detector

Safety gas detection for refrigerants, toxic and combustible gases

Bacharach’s MGS-410 Gas Detector makes compliance with mechanical equipment room and refrigeration safety codes simple and easy, saving time and money on equipment and installation. Using the MGS-400 App, users can intuitively use, commission and maintain their gas detection system without the need for specialty training or tools. Pre-calibrated sensor modules simplify maintenance, take minutes to exchange and do not require the use of calibration gas. The MGS-410 sensor can trigger additional audio-visual alarms and act as a standalone gas detection system, or integrate easily into a BMS / BAS or with Bacharach’s MGS-402 or MGS-408 Gas Detection Controllers.

  • IP66-rated enclosure protects from dust and water ingress
  • Plug-and-play pre-calibrated sensor modules allow for quick, simple sensor replacement
  • Temperature-compensated measurements mitigate false alarms and optimize accuracy in refrigeration applications (suitable for use in cold rooms and freezers down to -40°C)
  • Modbus communications for integration with Bacharach’s MGS-408 controller or third-party BMS / BAS control systems
  • Integrated audible / visual alarms for refrigeration safety compliance – no additional hardware required
  • MGS-400 mobile app (available for Android and iOS) allows users to interface via Bluetooth with gas detector for easy commissioning and maintenance without specialty tools or training
Show Less
Read More
MGS-410 Gas Detector
MGS-410 Gas Detector
Safety gas detection for refrigerants, toxic and combustible gases
Videos
Specifications
Approvals
Tools and Training
Literature
Videos
Show More Videos
Show Less Videos
Specifications
Accuracy
SC - < -10%/+15% of Full-Scale; IR, Cat, EC - < ±5% of Full-Scale
Alarm
Integrated Audible / Visual Alarm
Altitude
0 to 6,560 ft (2,000 m)
Ambient Temperature
-40 to 122°F (-40 to +50°C)
Approvals / Standards
CE, UL / CSA / IEC EN 61010-1
Buzzer Volume
80 dB @ 10 cm
Country of Origin
United States
Digital Communications
Modbus RTU via RS 485
Enclosure Rating
IP66
Gas Name
Hydrocarbons
Humidity
5 to 90% RH, non-condensing
Measuring Range
Sensor Dependent (See Datasheet)
Operating Voltage
24 VDC
Power
19.5 to 28.5 VDC or 24 VAC ±20%; 4W
Product Dimensions (L×W×H)
5.1” × 5.1” × 2.7” (130 × 130 × 68 mm)
Product Weight
9.2oz (260 g)
Resolution
Sensor & Gas Concentration Dependent (See Datasheet)
Sensitivity/Minimum Detection Limit
Sensor Dependent (See Datasheet)
Sensor Channels
1
Sensor Type
Sensor Dependent (See Datasheet)
User Interface
MGS 400 Series App
Warranty
1 Year
Approvals
Approvals subject to change without notice and may differ based on configuration, part number and/or country. Contact Customer Service or check approval label on product for specific approval information.
