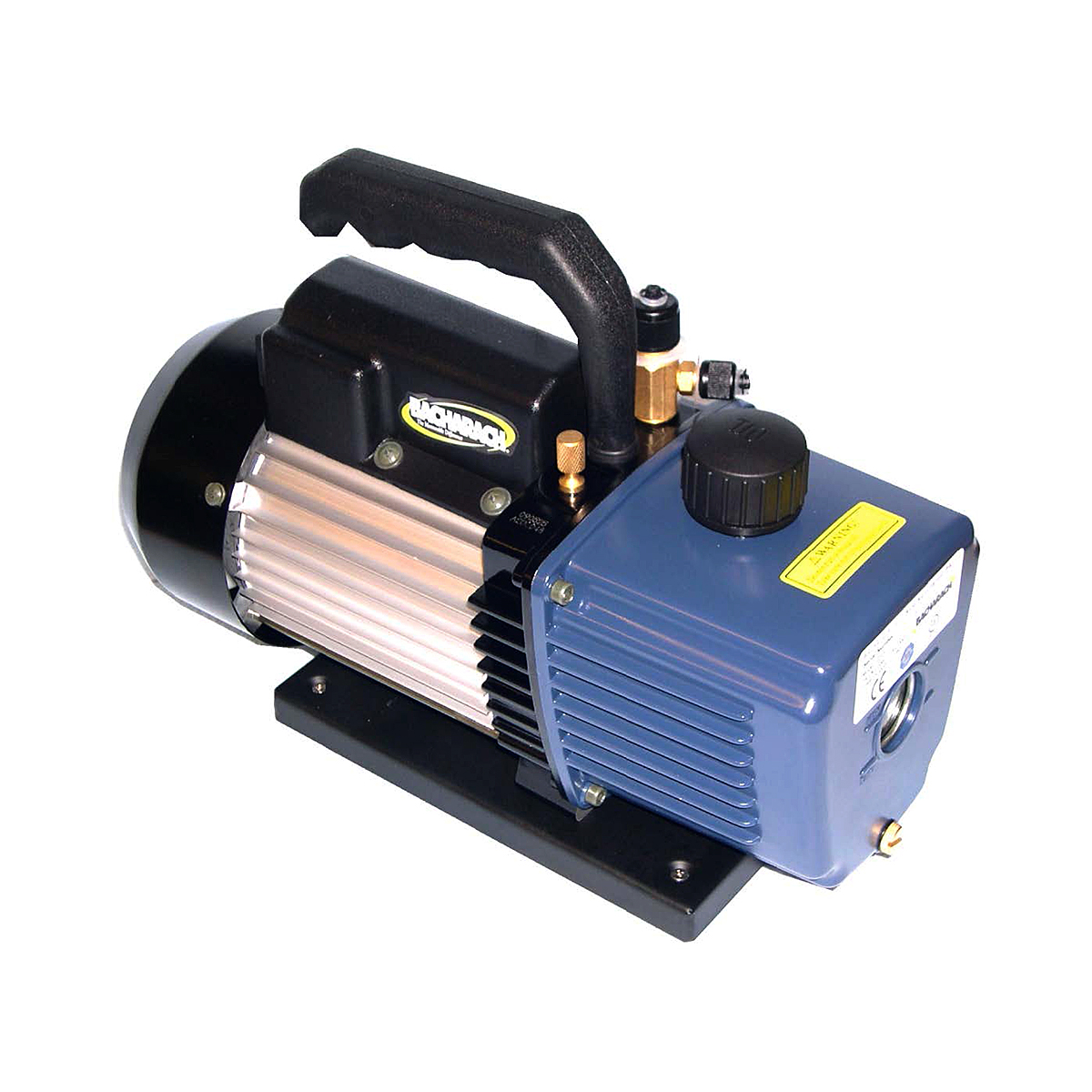

QV2 Vacuum Pump

High Performance 1.7 CFM Vacuum Pump for A/C Maintenance

The Bacharach QV2 Vacuum Pump provides up to 1.7 CFM of free air displacement using an anti-oil-returning design.

  • Two stage rotary vane pump
  • Anti-oil-returning design utilizing a special air passage, designed to prevent pump oil from returning to contaminate vacuum vessel and pipeline after the pump stops
  • Light, compact and well balanced
  • 1/4” and 3/8” flare and 1/2” ACME intake ports
  • One year warranty
Request a Quote
Download Datasheet
Category:

Description

The QV2 vacuum two stage rotary vane pump from Bacharach is feature-rich. Rated for up to 1.7 CFM, the pump pulls 25 microns vacuum and include 1/4, 3/8 and 1/2 in. fittings. The QV2 is specially designed to operate under low temperature and low voltage conditions to guarantee normal starting in winter and rated voltages ± 10%.

The 1720 rev / minute motor utilizes strong light aluminum alloy casing which guarantees cool, continuous normal operation. The motor and pump are integrated in the design, making the QV2 compact and easier to handle.

  • Product Specifications
  • Technical Library
  • Part Numbers
Free Air Displacement: 1.7 CFM
Pump Type: 2-stage Rotary Vane
Motor: 1/4 HP
Intake Ports: 1/4, 3/8 and 1/2 in. SAE flared
Oil Capacity: 11.8 fl. oz. (350 mL)
Ultimate Vacuum: 25 microns (0.03 mbar)
Power: 110-120 VAC/60 Hz
Product Dimensions (L×W×H): 13" × 10 × 5.3" (33.0 × 25.4 × 13.5 cm)
Product Weight: 19.4 lbs. (8.8 kg)
Warranty: 1 Year
Part Number Description
2002-0001 QV2 Vacuum Pump (1.7 CFM)
