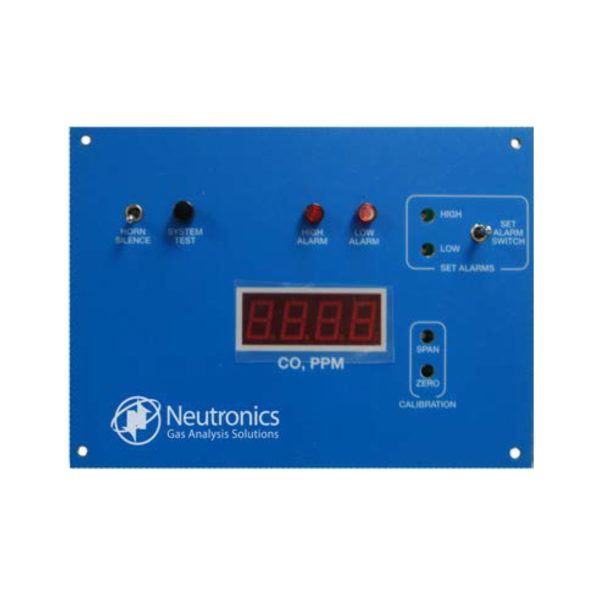

OEM120-CO Carbon Monoxide Analyzer

Carbon Monoxide Analyzer, Panel Mounted

The OEM120-CO Series is a panel mounted analyzer that accurately measures carbon monoxide in the range of 0 to 200 ppm.

  • 0 to 200 ppm measurement range
  • Electrochemical sensor is una­ffected by background gases
  • Two adjustable alarm setpoints with relays
  • Alarm horn with silence switch
  • Large 1/2” high LED display
Request More Information
Download Datasheet
Category: Tag:

Description

The Neutronics OEM120-CO Carbon Monoxide Analyzer is a panel mounted analyzer that accurately measures carbon monoxide in the range of 0 to 200 ppm. Designed for continuous operation, this analyzer measures and displays the level of carbon monoxide in a workplace area and provides audible and visual alarms if the level exceeds predetermined setpoints.

The electrochemical sensor ensures reliable performance and fast response for safety critical measurements. The sensor is a small fuel cell that measures carbon monoxide directly. It is easily replaceable and unaffected by most background gases.

  • Product Specifications
  • Part Numbers
  • Gas List
Measuring Range: 0 to 200 ppm 1 ppm resolution (500 ppm max overload)
Enclosure Rating: --
Response Time: T90 < 40 sec
Power: 115/230 VAC ±20% 50-60 Hz or 9-15 VDC
Analog Communications: --
Relay Rating: Low (20 ppm) and High (50 ppm) alarm factory set points
Ambient Temperature: 32 to 122°F (0 to 50°C)
Humidity: 0 to 90% RH (non-condensing)
Product Dimensions (L×W×H): 6.75" x 5" x 3.81"
Product Weight: 5 lb
Sensor Type: Electrochemical
Expected Sensor Service Life: 2 Years (In Air)
Warranty: 1 Year
Country of Origin: United States
Part Number Description
7-06-1200-01-0 Model 120 Series CO monitor
7-06-1200-00-0 Model 120 series CO monitor (4-20mA output)
6-01-1001-37-0 Sensor replacement kit (sensor, filter, screen, and O-ring)
1-11-1120-03-0 Replacement fuse
2-03-1000-00-0 Potentiometer adjustment tool
1-15-3002-00-0 90 dB horn

Supported Gases:
