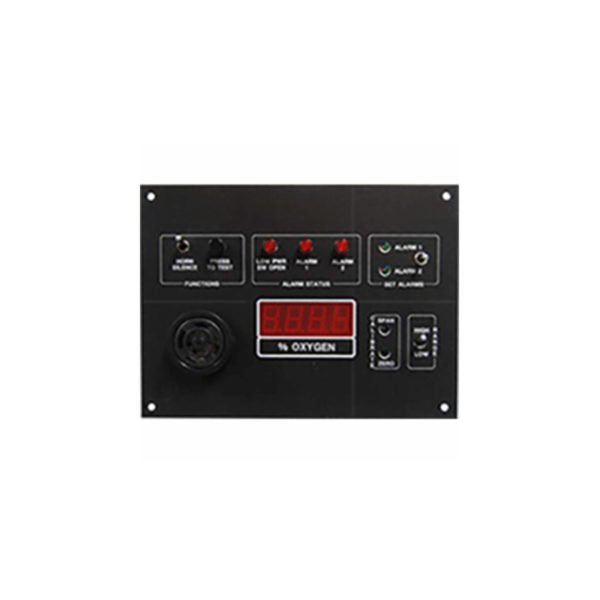

OEM100 Oxygen Analyzer

Percent Oxygen Analyzer, Panel Mounted

The Neutronics OEM100 is a Panel Mounted Oxygen Analyzer that accurately measures oxygen in the range of 0 to 20% and 0 to 25%

  • 0 to 20% and 0 to 25% O2 dual measurement range
  • Two adjustable alarm setpoints with relays
  • Alarm horn with silence switch
  • Large 1/2″ high LED display
  • Electrochemical sensor unaffected by background gases
Request More Information
Download Datasheet
Category: Tag:

Description

The Neutronics OEM 100 O2 is a panel mounted analyzer that accurately measures oxygen in the range of 0 to 20% and 0 to 25%. Designed for continuous operation, this analyzer measures and displays the level of oxygen in a workplace area and provides audible and visual alarms if the level exceeds predetermined setpoints.

The electrochemical sensor ensures reliable performance and fast response for safety critical measurements. The sensor is a small fuel cell that measures oxygen directly. It is easily replaceable and unaffected by most background gases.

  • Product Specifications
  • Part Numbers
  • Gas List
Measuring Range: 0-20% and 0-25% O2 with 0.1% resolution
Accuracy: ±1% of full scale
Enclosure Rating: Non-hazardous
Response Time: T95< 20 sec per step change
Display Size: Red 7 segment LEDs4 digit, 0.5" high
Power: 115/230 VAC ±20% 50-60 Hz or 9-15 VDC
Analog Communications: 0 - 2.5 VDC, 4-20 mA
Relay Rating: 2 oxygen relays (ascending or desc.) 1 switch activated
Ambient Temperature: 41 to 104°F (5 to 40°C)
Humidity: 15 to 90% RH (non-condensing)
Product Dimensions (L×W×H): 6.75 x 5.00" x 3.81"
Product Weight: 1.5 lb
Sensor Type: Electrochemical
Expected Sensor Service Life: 9 to 12 Months (at STP)
Warranty: 1 Year
Country of Origin: United States
Description Part Number
Model OEM 100 analyzer 7-06-1000-08-0
Model OEM 100 analyzer (4-20mA output) 7-06-1000-10-0
Replacement 0 to 25% sensor with O-ring 8-01-1000-02-2
Replacement 20″ long sensor interface cable 6-02-1001-31-0
Potentiometer adjustment tool 2-03-1000-00-0
90 dB horn 1-15-3002-00-0

Supported Gases:
