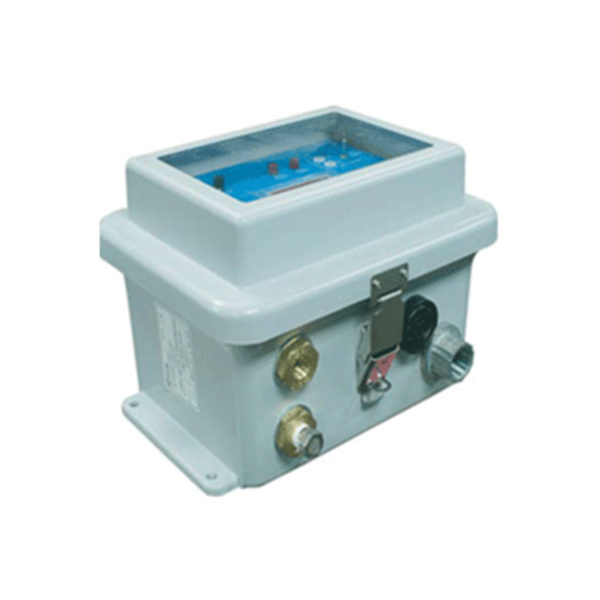

OEM100-CO Carbon Monoxide Analyzer

Carbon Monoxide Analyzer, Wall mounted

The Neutronics OEM100 is a Wall Mounted Carbon Monoxide Analyzer that accurately measures in the range of 0 to 200 ppm

  • 0 to 200 ppm measurement range
  • Easy to install wall mount NEMA 4X ­fiberglass enclosure
  • Electrochemical sensor is unaffected by background gases
  • Alarm horn with silence switch
  • Large 1/2” high LED display
Request More Information
Download Datasheet
Category: Tag:

Description

The Neutronics OEM100-CO Carbon Monoxide Analyzer is a wall mounted analyzer that accurately measures carbon monoxide in the range of 0 to 200 ppm. Designed for continuous operation, this analyzer measures and displays the level of carbon monoxide in a workplace area and provides audible and visual alarms if the level exceeds predetermined setpoints.

The analyzer is installed in a NEMA 4X ­fiberglass enclosure with a large window that provides a clear view of the entire control panel. An optional flowmeter and ow switch located inside the enclosure allows the user to adjust the flow rate of the sample gas to ensure that there is sufficient gas ow across the sensor to produce an accurate measurement.

  • Product Specifications
  • Part Numbers
  • Gas List
Measuring Range: 0 to 200 ppm 1 ppm resolution (500 ppm max overload)
Enclosure Rating: NEMA 4X
Response Time: T90 < 40 sec
Power: 115/230 VAC ±20% 50-60 Hz or 9-15 VDC
Analog Communications: --
Relay Rating: Low and High alarm factory set points
Ambient Temperature: 32 to 122°F (0 to 50°C)
Humidity: 0 to 90% RH (non-condensing)
Product Dimensions (L×W×H): 9.62" x 7.46" x 6.22"or12" x 10" x 6"
Product Weight: 8 lb
Sensor Type: Electrochemical
Expected Sensor Service Life: 2 Years (In Air)
Warranty: 1 Year
Country of Origin: United States
Part Number Description
7-06-2000-03-0 Model OEM 100 CO analyzer
7-06-2000-08-0 Model OEM 100 CO analyzer ( 4-20mA output)
6-01-1001-37-0 Sensor replacement kit (sensor, Filter, screen, O-ring)
1-11-1120-03-0 Replacement fuse
2-03-1000-00-0 Potentiometer adjustment tool
2-05-2003-00-2 Flowmeter, 0 to 4.0 lpm
1-15-3002-00-0 90 dB horn
6-01-1000-99-3 Sample gas flow switch

Supported Gases:
