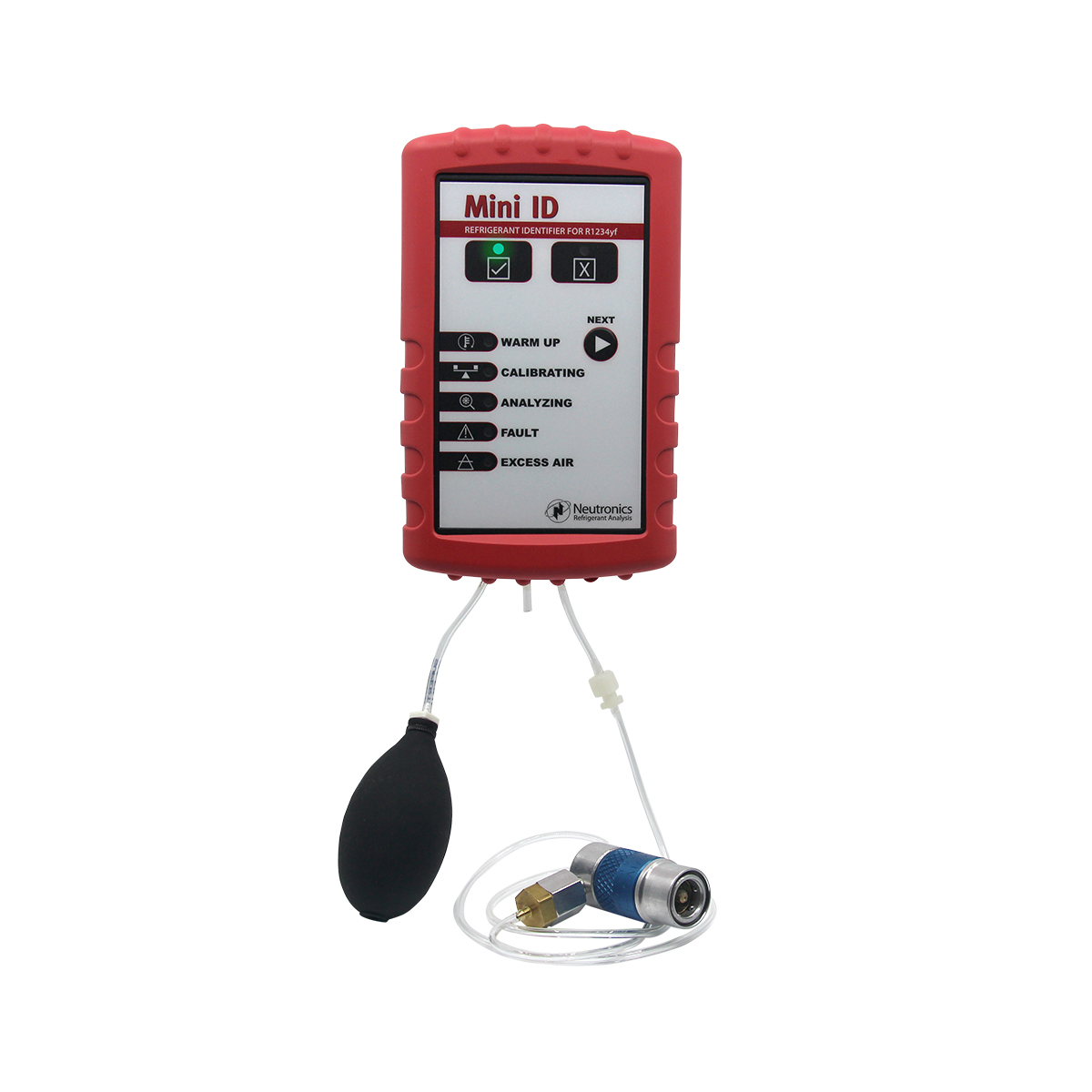

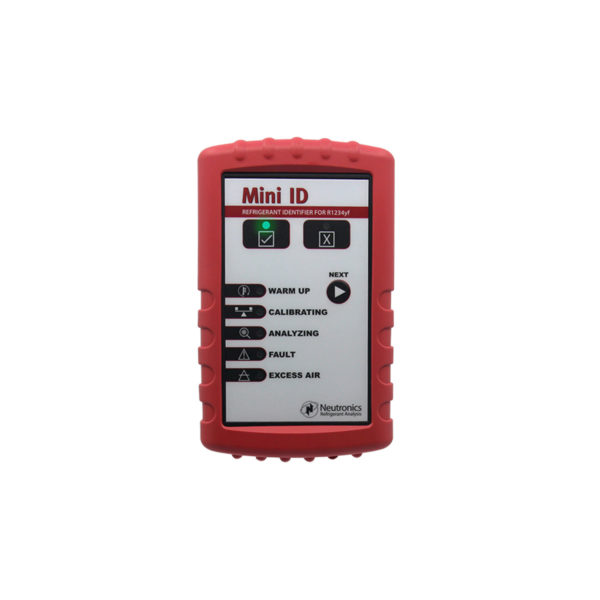

Mini ID R-1234yf Refrigerant Identifier

Mini ID R-1234yf Refrigerant Identifier

Handheld refrigerant identifier

The Neutronics, low cost Mini ID™ R-1234yf Refrigerant Identifier helps you verify the presence and quality of R-1234yf refrigerant in vehicle air conditioning systems. This helps you avoid potential damage to your air conditioning service equipment and business from refrigerant contamination.



The Mini ID™ delivers fast and accurate refrigerant analysis in a self-contained, compact, and extremely portable package. The unit is rugged and very simple to use. It automatically provides step-by-step indication of the gas sampling process.


  • Easy to use with ‘PASS’ or ‘FAIL’ LED indication
  • ‘FAULT’ and ‘EXCESS AIR’ LEDs
  • Step by step LED indications of the gas sampling process
  • Compact and lightweight design
  • Rugged construction and housing
  • Hand-held and extremely portable
Show Less
Read More
Mini ID R-1234yf Refrigerant Identifier
Mini ID R-1234yf Refrigerant Identifier
Handheld refrigerant identifier
Videos
Specifications
Approvals
Tools and Training
Literature
Videos
Show More Videos
Show Less Videos
Specifications
Accuracy
±2%
Altitude
0 to 8,000' (2,440 m)
Ambient Temperature
50 to 120°F (10 to 49°C)
Approvals / Standards
CE, UL, RoHS
Country of Origin
United States
Gas Name
R-1234yf
Humidity
0-95% RH non-condensing
Measuring Range
90-100% for R-1234yf
Operating Voltage
12 VDC
Power
12 VDC Vehicle Battery Clips
Product Dimensions (L×W×H)
7" × 4.5" × 2"( 17.8 × 11.43 × 5.08. cm)
Product Weight
1.5 lbs.
Resolution
Pass/Fail at ≥ 97% Pure R-1234yf
Sample Type
Vapor
Test Time
100 seconds
User Interface
LED illumination
Warranty
1 Year
Approvals
Approvals subject to change without notice and may differ based on configuration, part number and/or country. Contact Customer Service or check approval label on product for specific approval information.
