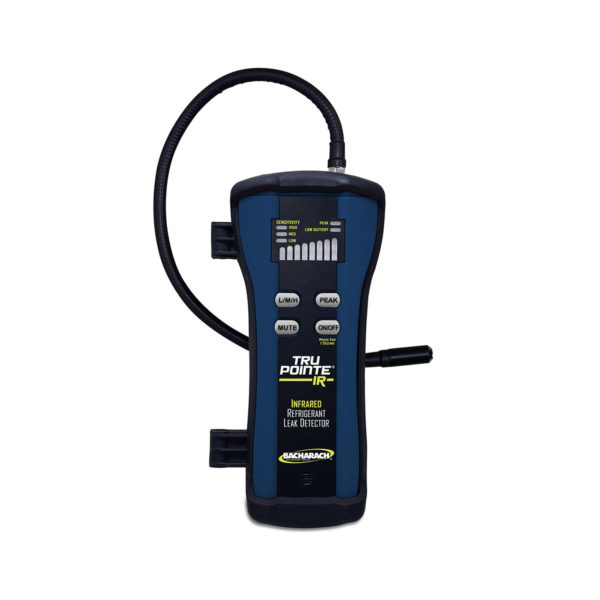

Tru Pointe IR Refrigerant Leak Detector

Tru Pointe IR Refrigerant Leak Detector

Infrared Refrigerant Leak Detector

The Tru Pointe® IR is a handheld, infrared refrigerant leak detector that utilizes a long-life infrared sensor in a low-cost package to effectively pinpoint leaks of CFC, HFC, HCFC and HFO refrigerants. Ready for use in 30 seconds and with 8 hours of battery life in a single charge, the Tru Pointe® IR is truly a go-to tool.



The Tru Pointe® IR infrared refrigerant leak detector has a long, flexible neck and the kit includes probe extensions (including a “needle” probe) for detecting leaks in hard-to-reach areas. Selectable sensitivity settings and an LED scale shows relative leak sizes while the auto-zeroing feature enables leak detection in backgrounds where target gas is present. Includes 1 year warranty that also covers the IR sensor.

  • Detects refrigerants with the sensitivity and accuracy of infrared but at the cost of older sensor technologies
  • Flexible probe (15 in.) with probe extensions (incl. “needle” probe) for finding leaks in tight spaces
  • Visual and audible indicators include an LED scale and a speaker (with mute option)
Show Less
Read More
Discontinued    additional information
Tru Pointe IR Refrigerant Leak Detector
Tru Pointe IR Refrigerant Leak Detector
Infrared Refrigerant Leak Detector
Discontinued    additional information
Videos
Specifications
Approvals
Tools and Training
Literature
Videos
Show More Videos
Show Less Videos
Specifications
Altitude
1 ATM
Ambient Temperature
32 to 104 °F (0 to 40 °C)
Approvals / Standards
CE
Background Adjustment
Automatic
Expected Sensor Service Life
10 Years
Humidity
10 to 90% RH (non-condensing)
Power
3.7 V/1880 mAH internal rechargeable lithium ion battery
Product Dimensions (L×W×H)
Unit: 7.5" × 3.75" × 1.75" (19.05 × 9.52 × 4.45 cm) Probe: 15.5" (39.37 cm)
Product Weight
15.6 oz (442 g) including battery
Response Time
< 1 second
Run Time
8 hours (typical) on full charge
Sensitivity/Minimum Detection Limit
Low: 0.5 oz/yr (14 g/yr) Medium: 0.25 oz/yr (7 g/yr) High: 0.1 oz/yr (3 g/yr)
Warm-up Time
30 Seconds
Warranty
1 Year (Including Sensor)
Approvals
Approvals subject to change without notice and may differ based on configuration, part number and/or country. Contact Customer Service or check approval label on product for specific approval information.
